VTA T9451 DV+ Performance, Blow Off Valve Sound!

WORLDWIDE PCT PATENTS PENDING

The VTA is a performance blow-off valve solution for Audi, VW, Skoda and SEAT vehicles with an electronic factory diverter valve.

If you want sound with your performance (or performance with your sound!), GFB’s VTA delivers just that! By combining the proven performance benefits of our ground-breaking DV+ with atmosphere venting, the VTA delivers an aggressive blow-off sound, improved throttle response and boost recovery, as well as superior boost holding and reliability in extreme conditions.

The VTA shares the successful DV+ design philosophy:

“Keep what works, replace what doesn’t”

This means we retain ECU control and the solenoid from the factory diverter to ensure the fastest possible response time, without the added and unnecessary cost of replacing the solenoid like some brands do.

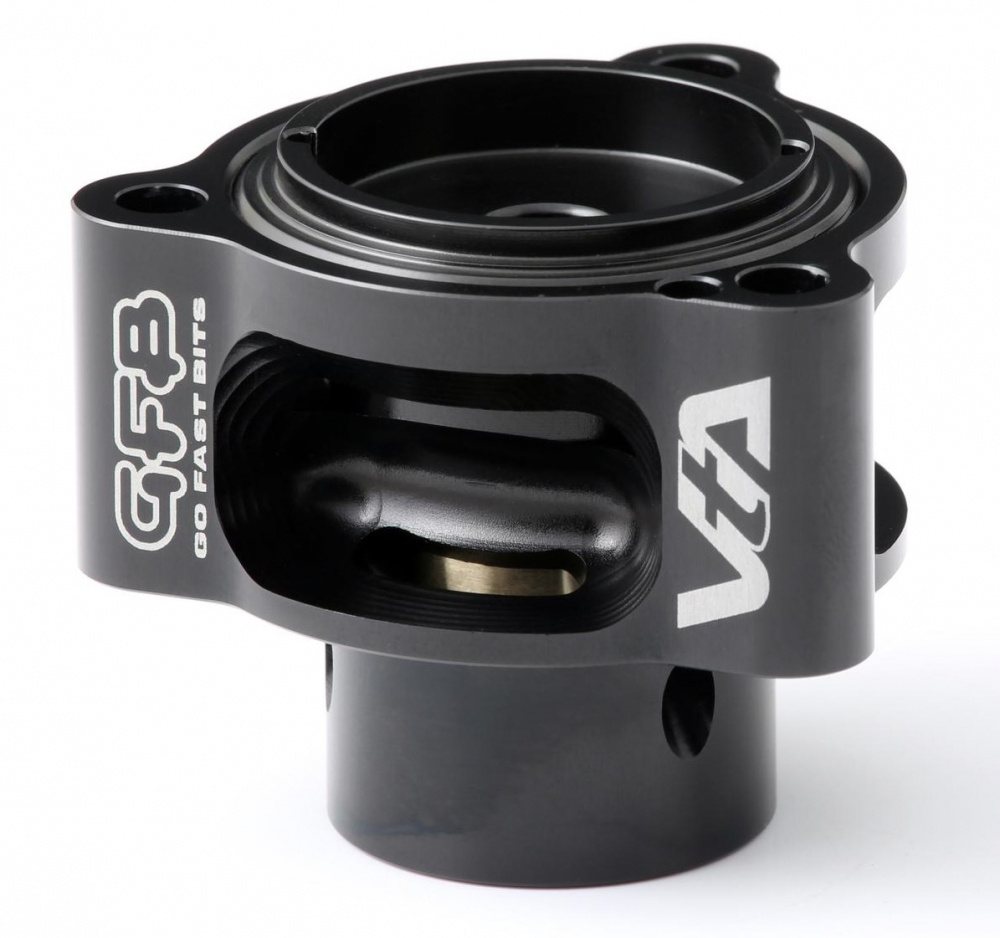

The weak part of the factory diverter has always been the plastic valve mechanism – this is the part we replace. The VTA features CNC machined billet components that last a lifetime, and we also change the valve operation method for better performance. The factory diverter valve can only operate in two states – open, or closed. When it opens fully at low boost, or during a partial throttle lift mid-corner, it causes increased lag and a noticeably non-linear boost transition.

GFB pioneered the use of “pilot operation” in the DV+, which works by re-purposing the factory solenoid to control the pressure behind the piston rather than the piston itself. This allows the solenoid stroke to be much shorter, speeding up the response time and increasing the actuation force. More importantly, it allows the piston to open and close progressively in response to the amount of boost pressure present, which smooths boost transitions and reduces the lag caused by the factory diverter valve.

It is this design philosophy that makes the VTA not only the best performing blow off valve solution, but also the best value on the market.

Key features:

• TMS Technology for faster boost recovery on gearshift and during throttle modulation
• Improved boost holding ability
• Atmosphere venting for blow-off sound
• Retains ECU control

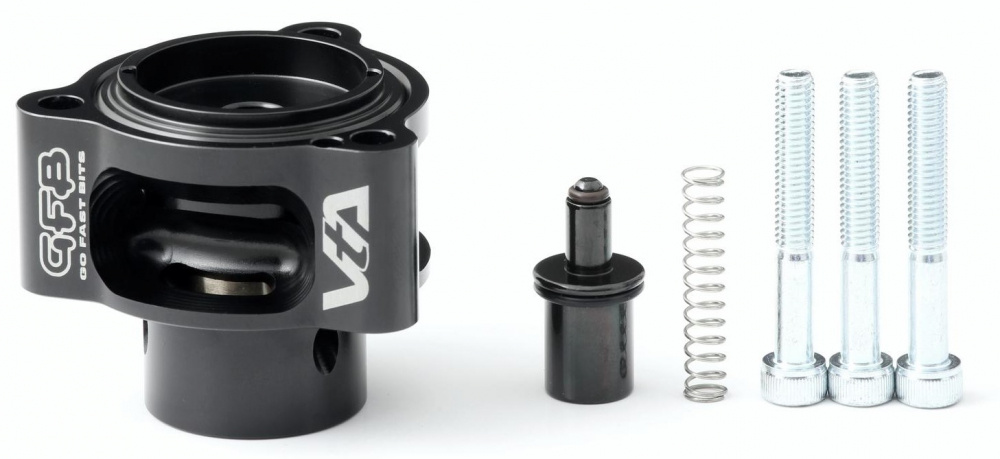

• Simple, direct bolt-on kits include everything you need to install
• Manufactured in Australia in accordance with ISO 9001

VTA or DV+?

Depends if you want sound or not. Both valves are constructed with the same quality materials and valve mechanism, and both offer the same performance and reliability benefits. However, the VTA vents to atmosphere for sound whilst the DV+ recirculates the air to keep it quiet.

Why choose a VTA over a “BOV spacer”?

“BOV spacers” are cheap and they make sound. But that’s it. All the inherent performance and reliability issues you get with the factory diverter valve remain, because a spacer doesn’t change the diverter valve in any way. The VTA improves the operation of the diverter valve for sound AND performance.

Why choose a VTA over a kit that includes a solenoid?

Because there’s no performance benefit to replacing the factory solenoid, only a much higher price! If a VTA with the factory solenoid can open in a couple of hundredths of a second, why pay more than you need to?

VTA T9451 (Fitment includes Mk5 & M6 GTI and similar) also suits:

AUDI 8P (2003-2013) 2.0TFSI 8P7 147kw Petrol Engine FWD Convertible 04/08-05/13
AUDI 8P (2003-2013) 2.0TFSI 8PA 147kw Petrol Engine FWD Hatchback 09/04-03/13
AUDI 8P (2003-2013) 2.0TFSI 8PA 118kw Petrol Engine FWD Hatchback 11/06-03/13
AUDI 8P (2003-2013) 2.0TFSI 8P7 118kw Petrol Engine FWD Convertible 04/08-05/13
AUDI 8P (2003-2013) 2.0TFSI 8P1 147kw Petrol Engine FWD Hatchback 09/04-08/12
AUDI 8P (2003-2013) 2.0TFSI 8PA 92kw Petrol Engine FWD Hatchback 09/07-03/13
AUDI 8P (2003-2013) 2.0TFSI 8P1 118kw Petrol Engine FWD Hatchback 11/06-08/12
AUDI 8P (2003-2013) 2.0TFSI 8PA 147kw Petrol Engine AWD Hatchback 09/04-03/13
AUDI 8P (2003-2013) 2.0TFSI 8P1 147kw Petrol Engine AWD Hatchback 09/04-08/12
AUDI B7 (2005-2008) 2.0TFSI 8EC, B7 147kw Petrol Engine FWD Sedan 11/04-06/08
AUDI B7 (2005-2008) 2.0TFSI 8H7, B6, 8HE, B7 147kw Petrol Engine FWD Convertible 01/06-03/09
AUDI B7 (2005-2008) 2.0TFSI 8ED, B7 147kw Petrol Engine FWD Wagon 11/04-06/08
VW Golf GTI Mk5 2.0TFSI 04-09 MK V 1K1 147kw Petrol Engine FWD Hatchback 05/05-02/09
VW Golf GTI Mk5 2.0TFSI 04-09 MK V 1K1 169kw Petrol Engine FWD Hatchback 09/06-12/08
VW Golf R Mk6 2.0TSI 08-13 MK VI 5K1 188kw Petrol Engine AWD Hatchback 11/09-11/13
VW Passat B6 2.0 TSI 05-11 3C2 147kw Petrol Engine FWD Sedan 07/05-07/10
VW Passat B6 2.0 TSI 05-11 3C5 147kw Petrol Engine FWD Wagon 08/05-11/10
AUDI S3 8P (2006-2013) 2.0TFSI 8P1 188kw Petrol Engine AWD Hatchback 02/07-08/12
AUDI S3 8P (2006-2013) 2.0TFSI 8PA 188kw Petrol Engine AWD Hatchback 07/08-03/13
AUDI TT 8J 2.0 TFSI 06-14 8J9 147kw Petrol Engine FWD Convertible 03/07-06/10
AUDI TT 8J 2.0 TFSI 06-14 8J3 147kw Petrol Engine FWD Coupe 08/06-06/10
AUDI TT 8J 2.0 TFSI 06-14 8J3 155kw Petrol Engine AWD Coupe 05/10-06/14
AUDI TT 8J 2.0 TFSI 06-14 8J9 155kw Petrol Engine FWD Convertible 05/10-06/14
AUDI TT 8J 2.0 TFSI 06-14 8J3 155kw Petrol Engine FWD Coupe 05/10-06/14
VW 2.0 TSI 147 kW 162, 163 147kw Petrol Engine FWD Sedan 12/10-on
VW 2.0 TSI / TFSI 1K2 147kw Petrol Engine FWD Sedan 10/05-10/10
AUDI TTS 8J 2.0 TFSI 06-14 8J3 200kw Petrol Engine AWD Coupe 05/08-06/14
AUDI TTS 8J 2.0 TFSI 06-14 8J9 200kw Petrol Engine AWD Convertible 05/08-06/14
AUDI TTRS 8J 2.5 TFSI 09-14 8J3 250kw Petrol Engine AWD Coupe 07/09-06/14
AUDI TTRS 8J 2.5 TFSI 09-14 8J9 250kw Petrol Engine AWD Convertible 07/09-06/14
VW Scirocco Mk3 2.0t FSI and 1.4 TSI (turbo only) 06-on Mk3 195kw Petrol Engine FWD Coupe 06/06-on
VW Scirocco Mk3 2.0t FSI and 1.4 TSI (turbo only) 06-on Mk3 154kw Petrol Engine FWD Coupe 06/06-on
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z5 118kw Petrol Engine FWD Wagon 06/07-04/13
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z5 90kw Petrol Engine FWD Wagon 11/08-06/13
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z3 147kw Petrol Engine FWD Hatchback 01/08-02/13
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z3 118kw Petrol Engine FWD Hatchback 06/07-04/13
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z3 90kw Petrol Engine FWD Hatchback 11/08-06/13
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (inc. vRS) 2005-2013 1Z5 147kw Petrol Engine FWD Wagon 10/05-02/13
VW Golf GTI Mk6 2.0TSI 08-13 MK VI 5K1 155kw Petrol Engine FWD Hatchback 04/09-11/12
VW Tiguan 2.0 TSI 11-on 5N_ 132kw Petrol Engine AWD Closed Off-Road Vehicle 05/11-05/16
VW Tiguan 2.0 TSI 11-on 5N_ 155kw Petrol Engine AWD Closed Off-Road Vehicle 05/11-05/16
VW Tiguan 2.0 TFSI 07/-on 5N_ 125kw Petrol Engine AWD Closed Off-Road Vehicle 09/07-on
VW Tiguan 2.0 TFSI 07/-on 5N_ 147kw Petrol Engine AWD Closed Off-Road Vehicle 09/07-on
VW Scirocco R Mk3 2.0t FSI (EA113) 06-13 137, 138 188kw Petrol Engine FWD Coupe 11/09-11/17
VW Scirocco R Mk3 2.0t FSI (EA113) 06-13 Mk3 90kw Petrol Engine FWD Coupe 06/06-on
VW Golf Mk6 1.4 TSI (turbo only, NOT twincharged) 08-13 MK VI AJ5 90kw Petrol Engine FWD Wagon 07/09-07/13
VW Golf Mk6 1.4 TSI (turbo only, NOT twincharged) 08-13 MK VI 5K1 90kw Petrol Engine FWD Hatchback 10/08-11/12
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 165kw Petrol Engine FWD Wagon 05/13-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8F7 155kw Petrol Engine FWD Convertible 03/09-06/14
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8TA 132kw Petrol Engine FWD Hatchback 09/09-06/14
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K2, B8 165kw Petrol Engine FWD Sedan 05/13-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8F7 125kw Petrol Engine FWD Convertible 10/11-03/16
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K2, B8 118kw Petrol Engine FWD Sedan 11/07-03/12
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8TA 155kw Petrol Engine FWD Hatchback 09/09-11/13
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8TA 165kw Petrol Engine AWD Hatchback 05/13-05/16
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 118kw Petrol Engine FWD Wagon 11/07-03/12
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8F7 155kw Petrol Engine AWD Convertible 03/09-01/17
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 132kw Petrol Engine FWD Wagon 06/08-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K2, B8 132kw Petrol Engine FWD Sedan 06/08-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8F7 165kw Petrol Engine AWD Convertible 05/13-05/16
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8F7 132kw Petrol Engine FWD Convertible 03/09-03/12
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K2, B8 165kw Petrol Engine AWD Sedan 05/13-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8T3 155kw Petrol Engine AWD Coupe 06/08-01/17
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8TA 125kw Petrol Engine FWD Hatchback 08/11-01/17
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8T3 125kw Petrol Engine FWD Coupe 10/07-01/17
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 155kw Petrol Engine AWD Wagon 06/08-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K2, B8 155kw Petrol Engine AWD Sedan 06/08-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8TA 155kw Petrol Engine AWD Hatchback 09/09-01/17
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 155kw Petrol Engine FWD Wagon 06/08-05/13
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 165kw Petrol Engine AWD Wagon 05/13-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8K5, B8 125kw Petrol Engine FWD Wagon 11/11-12/15
AUDI B8 (2007-2015) 1.8/2.0 TFSI 8T3 132kw Petrol Engine FWD Coupe 11/08-03/12
AUDI A6 2.0TFSI (2011-on) 4G2, 4GC, C7 132kw Petrol Engine FWD Sedan 05/11-on
AUDI A6 2.0TFSI (2011-on) 4G5, 4GD, C7 132kw Petrol Engine FWD Wagon 06/11-on
AUDI A6 2.0TFSI (2006-2011) 4F5, C6 125kw Petrol Engine FWD Wagon 06/05-08/11
AUDI A6 2.0TFSI (2006-2011) 4F2, C6 125kw Petrol Engine FWD Sedan 06/05-03/11
AUDI Q5 2.0TFSI (2008-on) 8RB 155kw Petrol Engine AWD Closed Off-Road Vehicle 11/08-on
SEAT Altea 04-on A5 147kw Petrol Engine FWD MPV 01/04-on
SEAT Altea 04-on A5 92kw Petrol Engine FWD MPV 01/04-on
SEAT Altea 04-on A5 155kw Petrol Engine FWD MPV 01/04-on
AUDI A1 2010-2014 1.4TFSI (90kW/122hp) 8XA, 8XF 90kw Petrol Engine FWD Hatchback 11/11-04/15
AUDI A1 2010-2014 1.4TFSI (90kW/122hp) 8X1, 8XK 90kw Petrol Engine FWD Hatchback 05/10-04/15
AUDI B9 (2015-on) 2.0TFSI 8W2, B9 185kw Petrol Engine AWD Sedan 05/15-on
AUDI B9 (2015-on) 2.0TFSI 8W5, B9 140kw Petrol Engine FWD Wagon 08/15-on
AUDI B9 (2015-on) 2.0TFSI 8W5, B9 185kw Petrol Engine FWD Wagon 05/16-on
AUDI B9 (2015-on) 2.0TFSI 8W2, B9 140kw Petrol Engine FWD Sedan 05/15-on
AUDI RS3 8V (2015-on) 8VA, 8VF 270kw Petrol Engine AWD Hatchback 03/15-on
