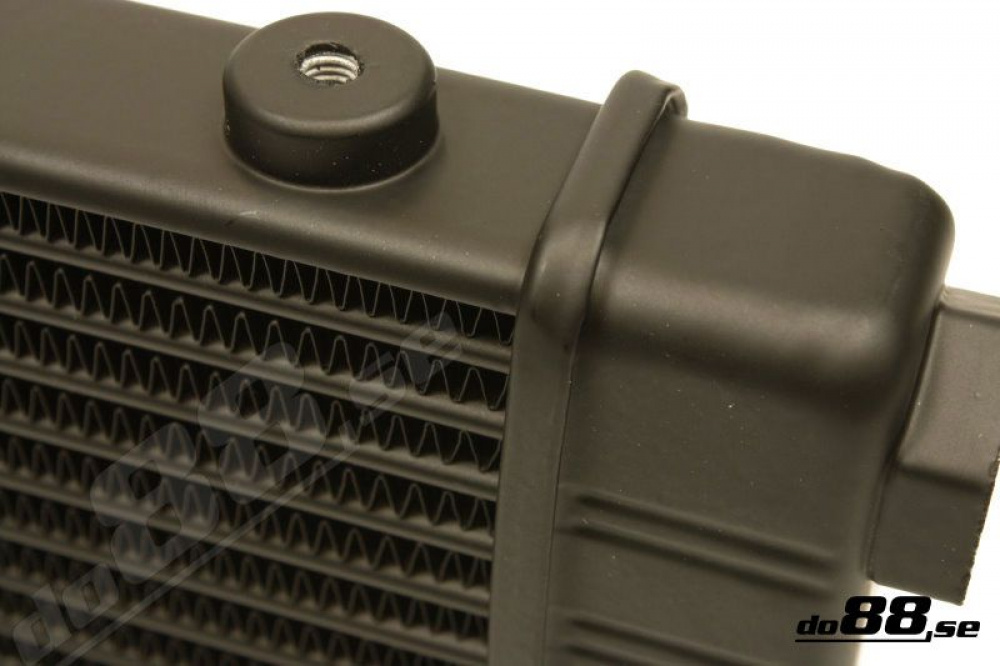

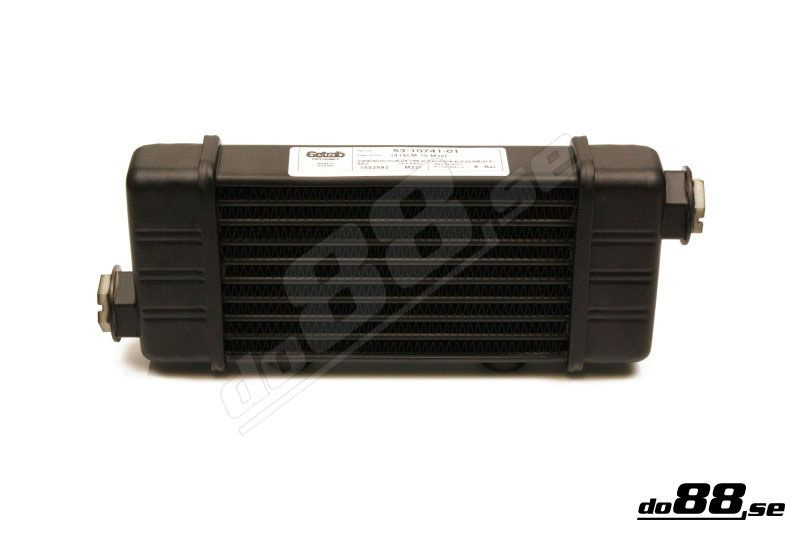

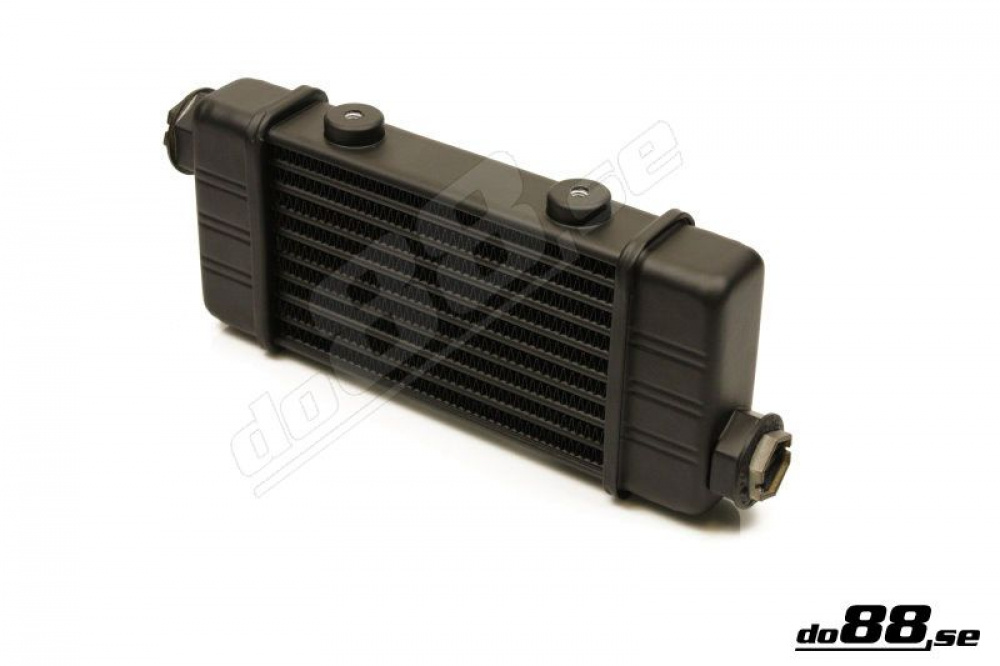

Setrab oil cooler made in Sweden manifactured in high quality aluminium. High cooling efficiency with maximum working pressure of 8 bar. Coated with nice black epoxy paint. SlimLine is a new series of oil coolers from Setram with only 31mm thick core! Oil cooler developed for cooling both engine oil or automatic transmission fluids.

Rows: 10
Connections: M22 inner, if you prefer other thread see category  Mounting
Width (A): 141mm
Total width (B): 211mm
Height (C): 88mm
Total height (D): 100mm

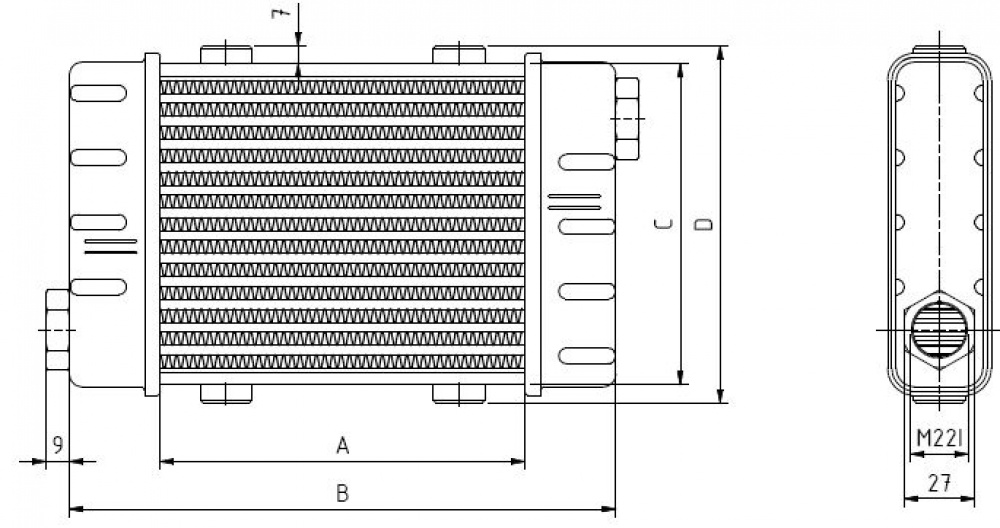

* Dimensions A to D are marked on the picture drawing.
** Max 4Nm of torque for the connections, use lubrication grease.
