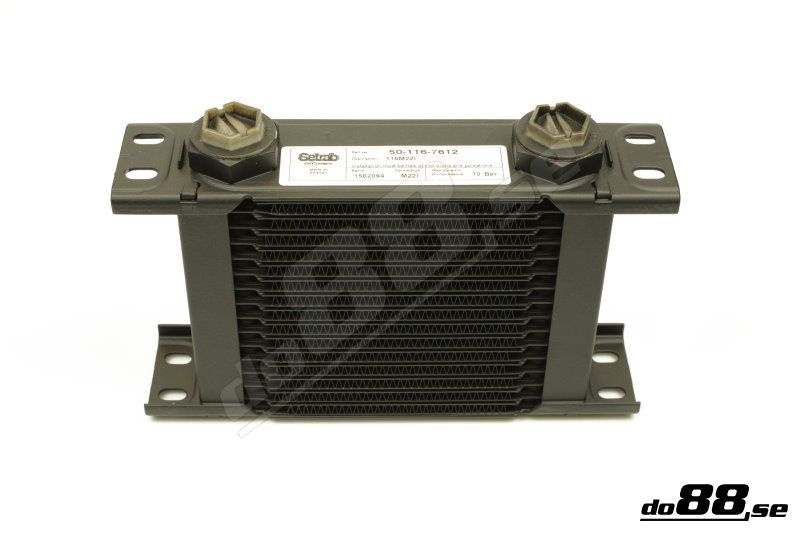

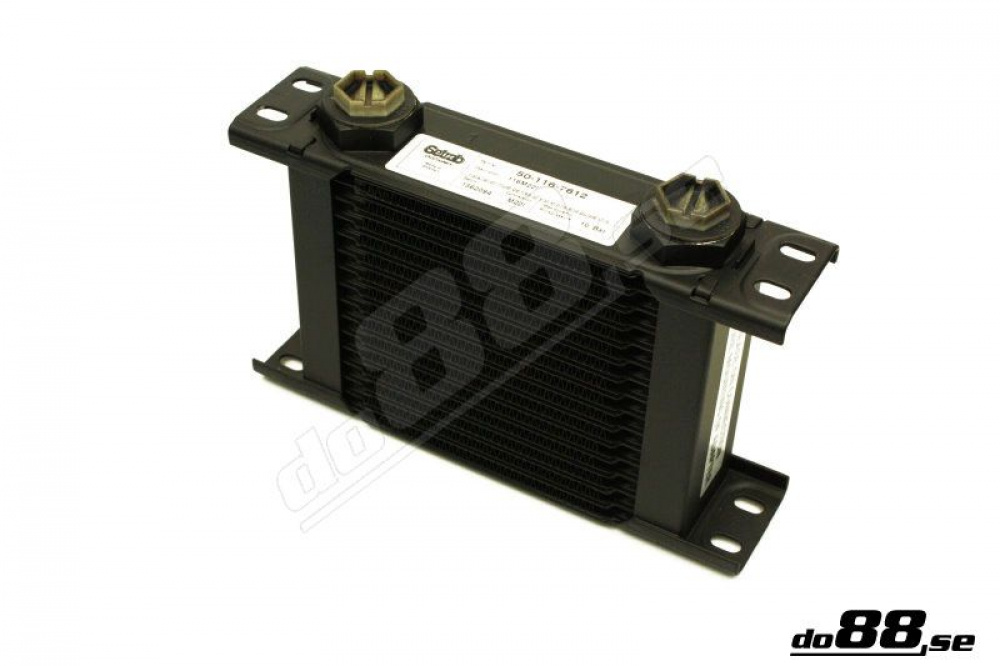

Setrab oil cooler made in Sweden manifactured in high quality aluminium. High cooling efficiency with maximum working pressure of 10 bar. Coated with nice black epoxy paint. Oil cooler developed for cooling both engine oil or automatic transmission fluids.

Rows: 16

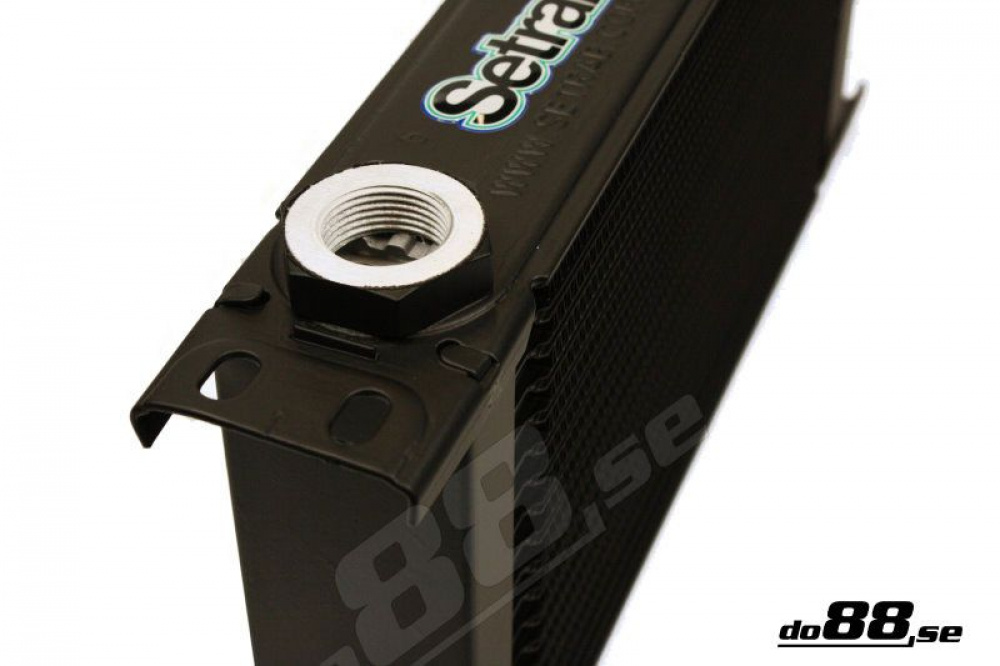

Connections: M22 inner, if you prefer other thread see category  Mounting
Width (A): 163mm
Height (B): 121,9mm
Center-Center between connections (C): 122mm
Center-Center between screw holes (D): 190mm
Total width (E): 210mm

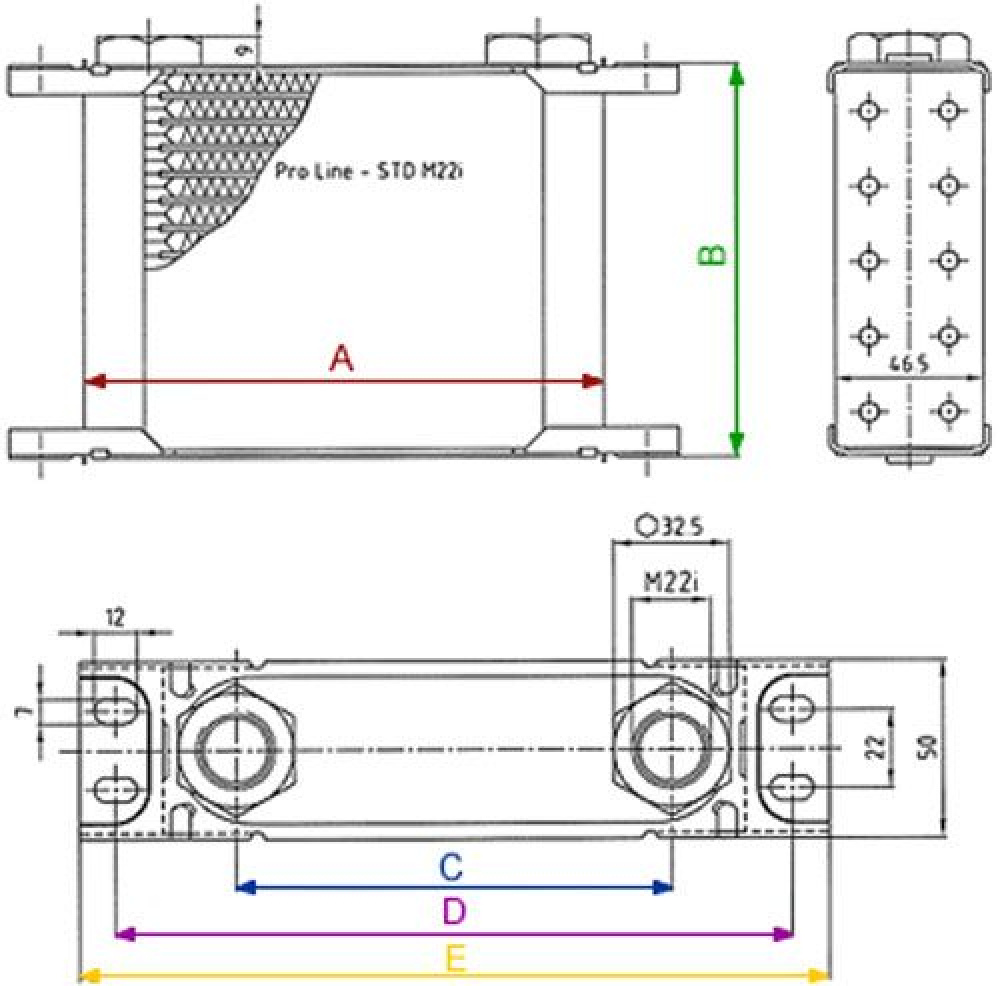

* Dimensions A to E are marked on the picture drawing.
