Rows: 16
Connections: M22 inner, if you prefer other thread see category Mounting
Width (A): 283mm
Height (B): 121,9mm
Center-Center between connections (C): 242mm
Center-Center between screw holes (D): 310mm
Total width (E): 330mm

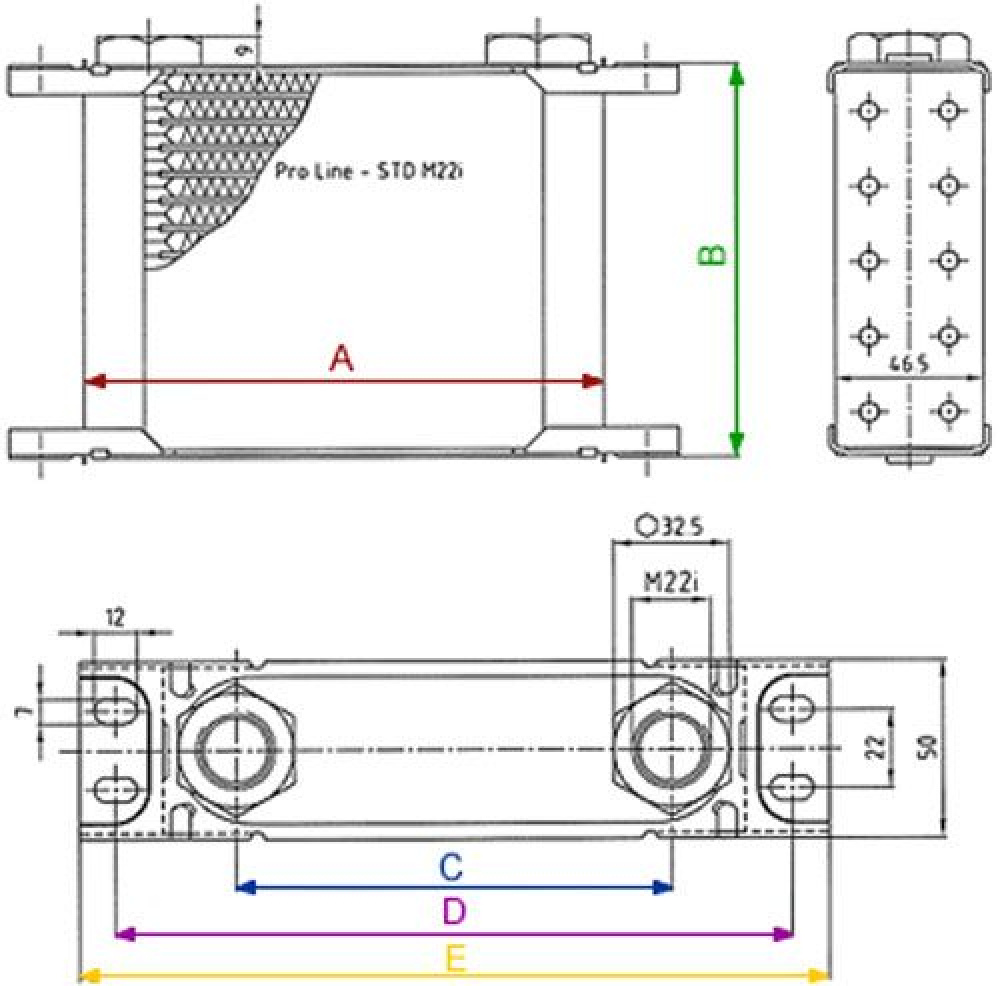

* Dimensions A to E are marked on the picture drawing.
