Product description
The best AUDI SEAT SKODA VW 1.8 / 2.0 TSI (MQB) performance intercooler kit on the market!

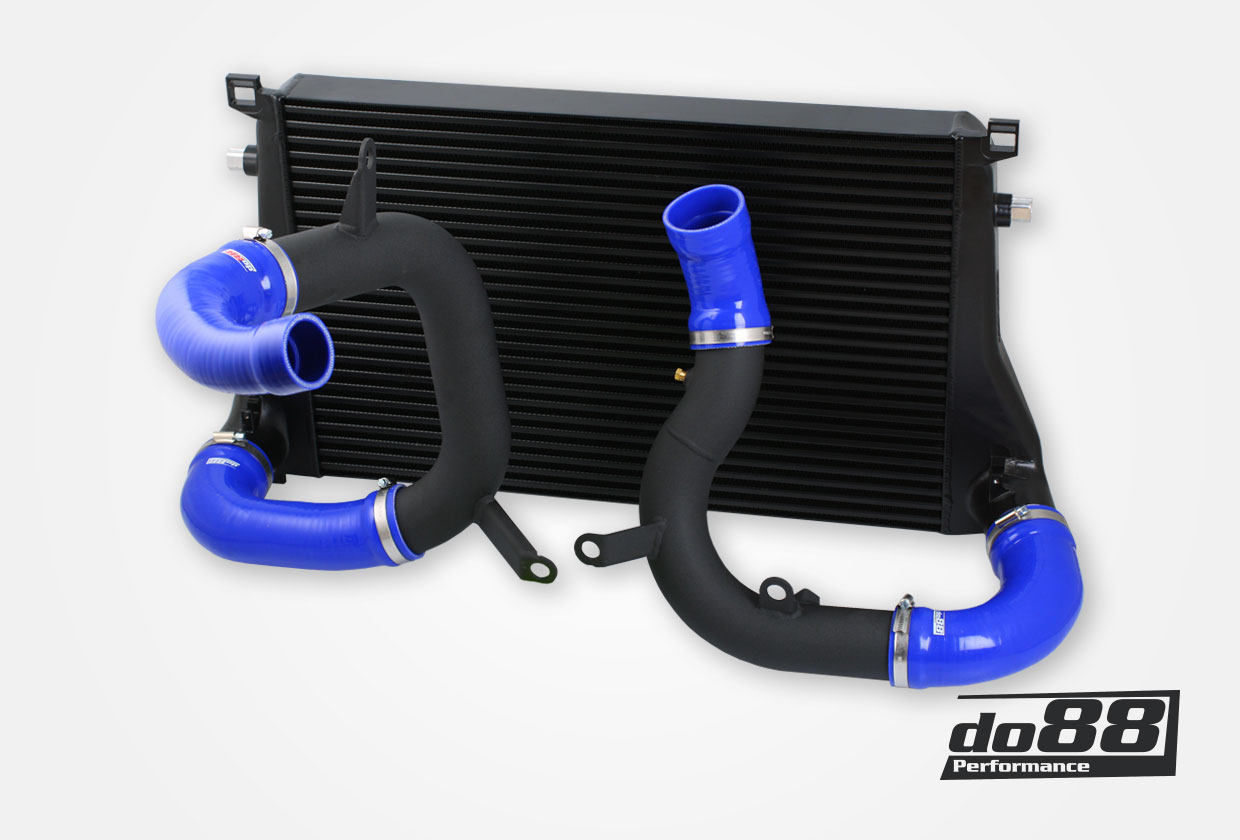

This BigPack includes both do88 performance intercooler and pipe kit.
This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench.
Advantages with do88 BigPack (OEM intercooler/pipes):
- Core volume: 15347 cm3 (7719 cm3), do88 is 99% larger!

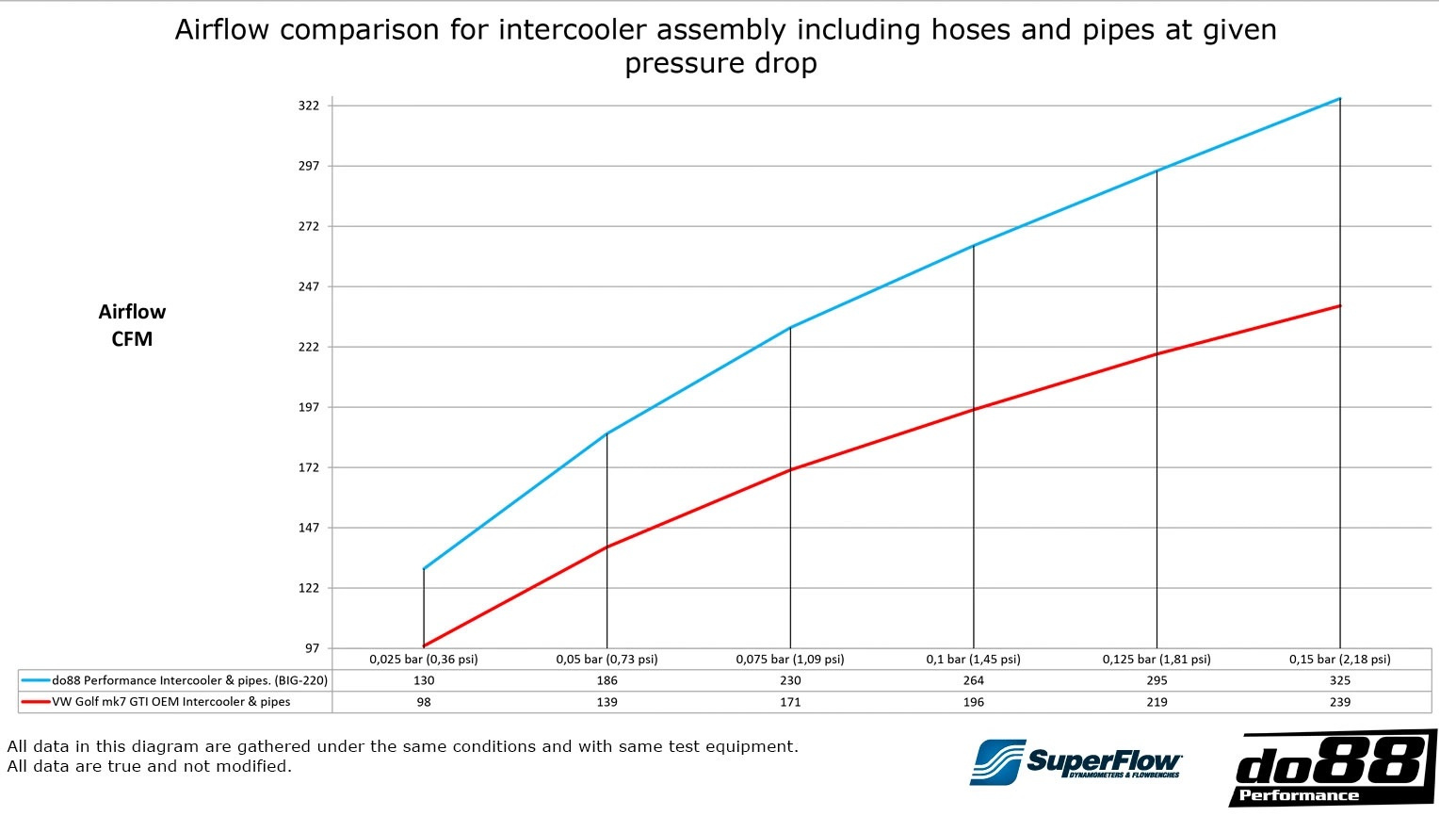

- Air flow at 0,15bar/2,18psi pressure drop: 325 CFM (239 CFM), do88 36% higher!

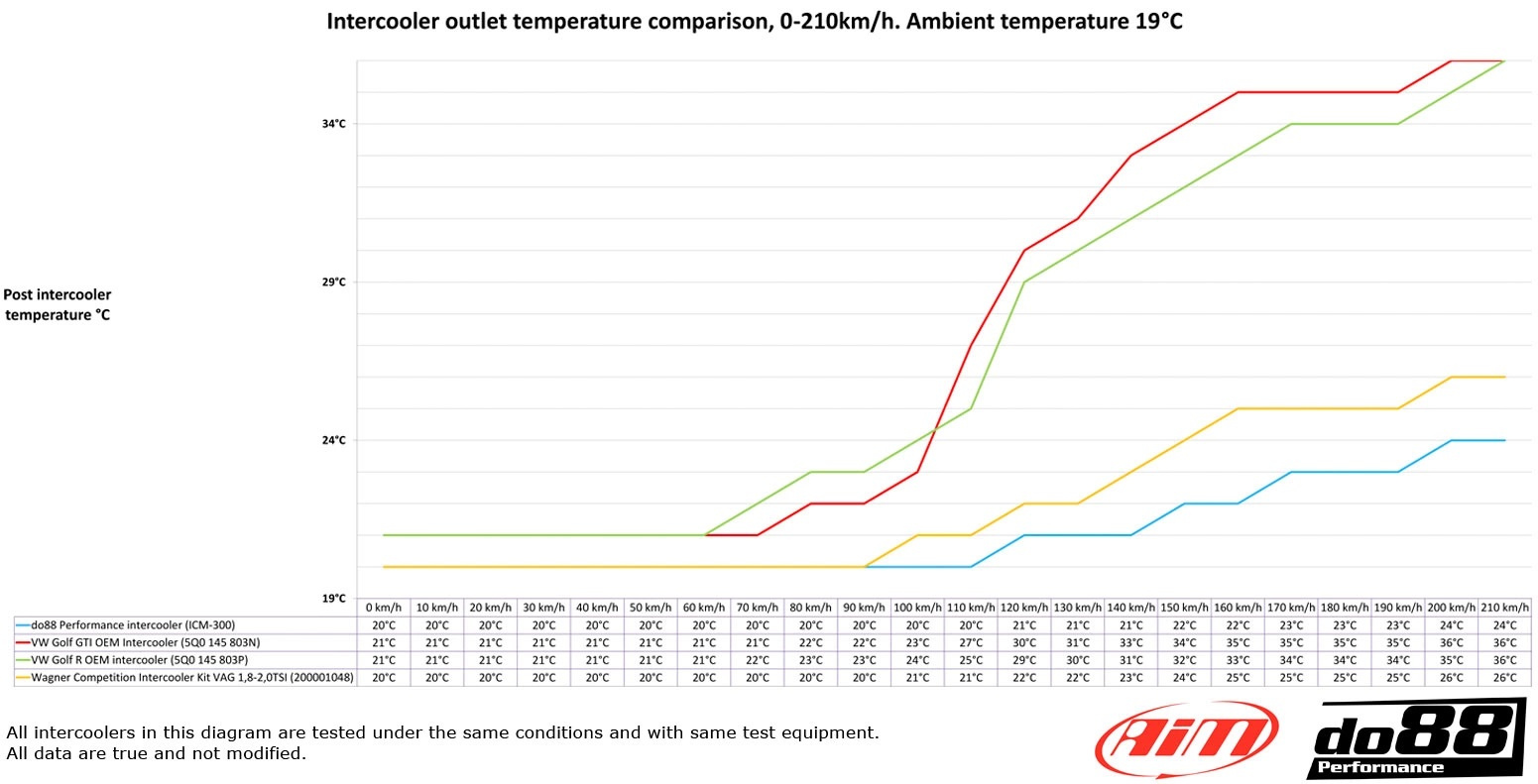

- Post intercooler air temperature at same conditions: 24°C (36°C), do88 12°C lower!
The BigPack includes a full aluminum performance intercooler and a complete 2,5” pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance.

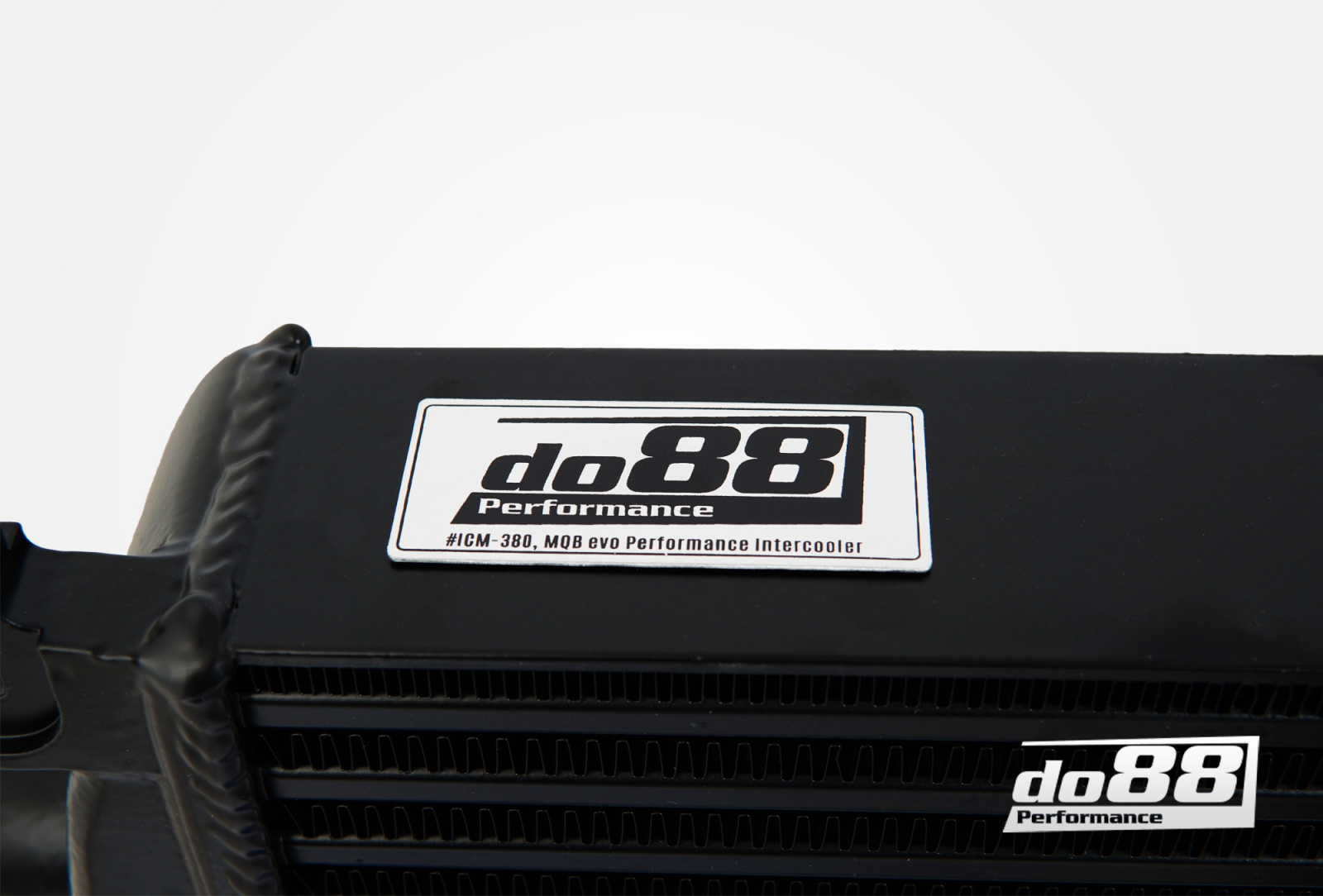

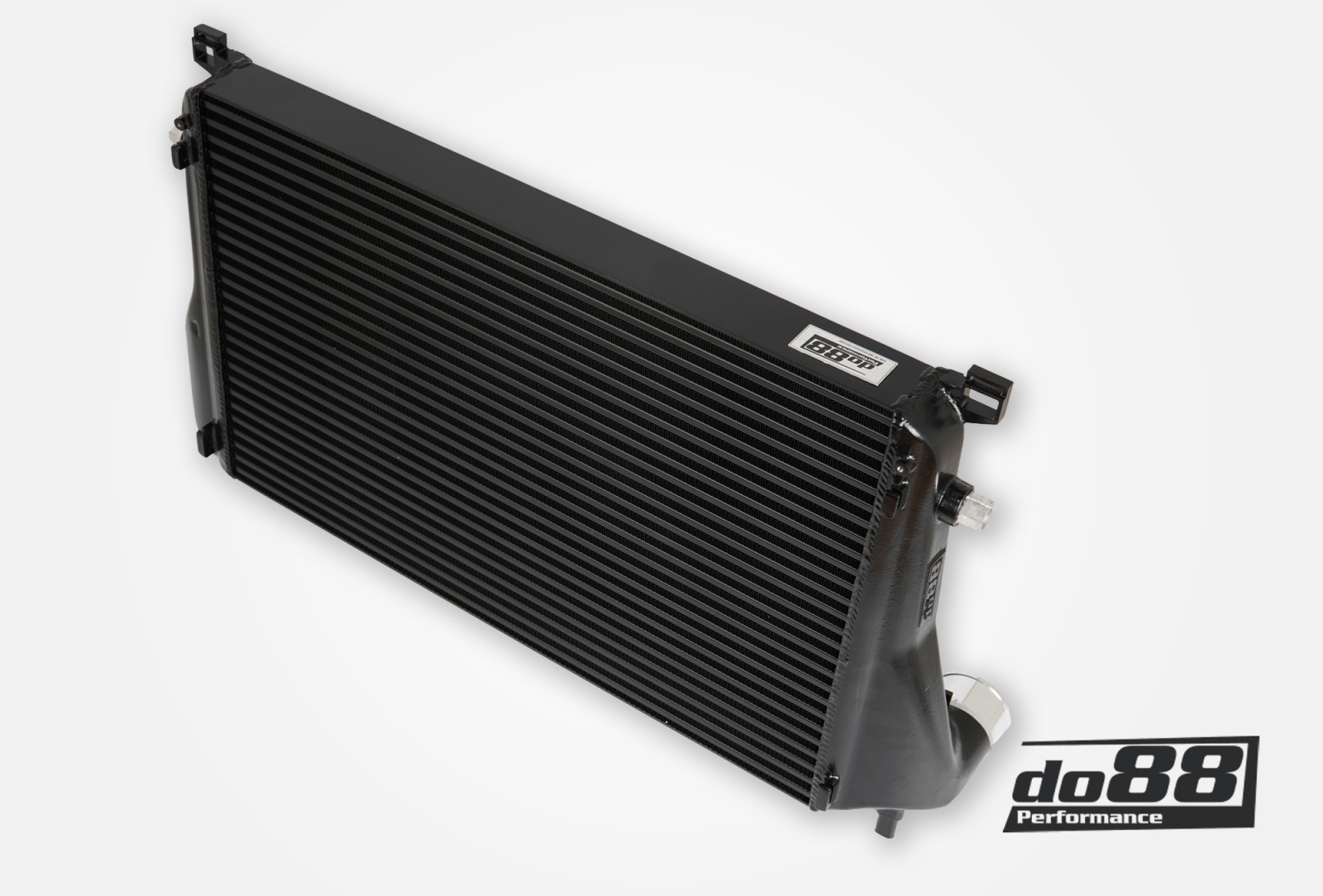

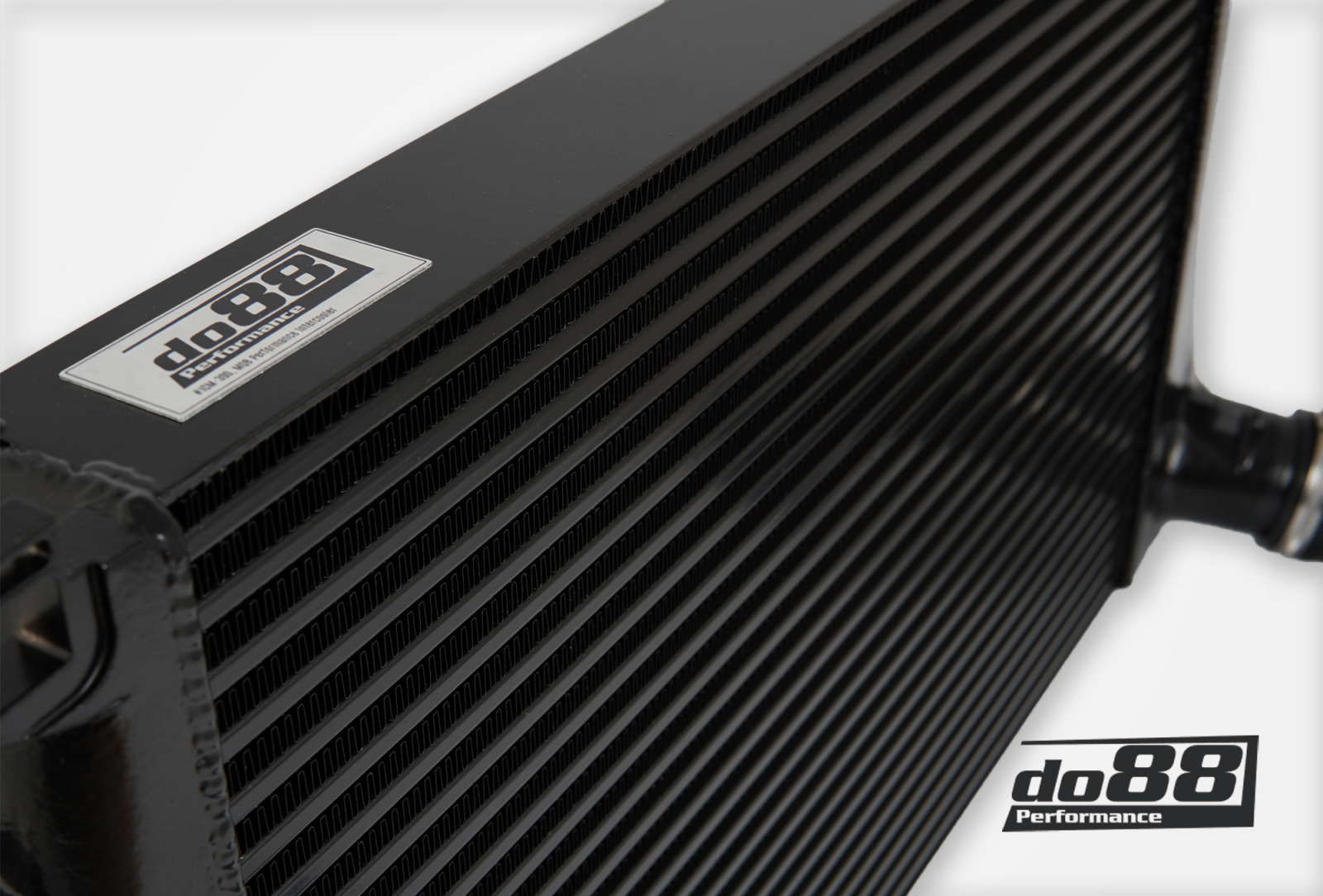

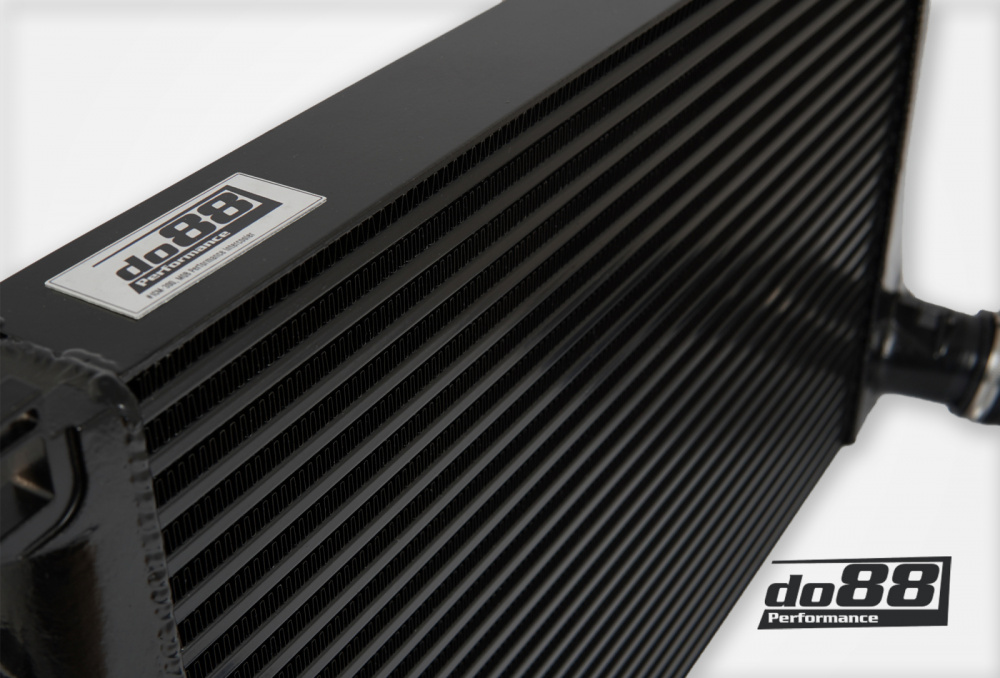

The do88 performance intercooler is an all-aluminum construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop!

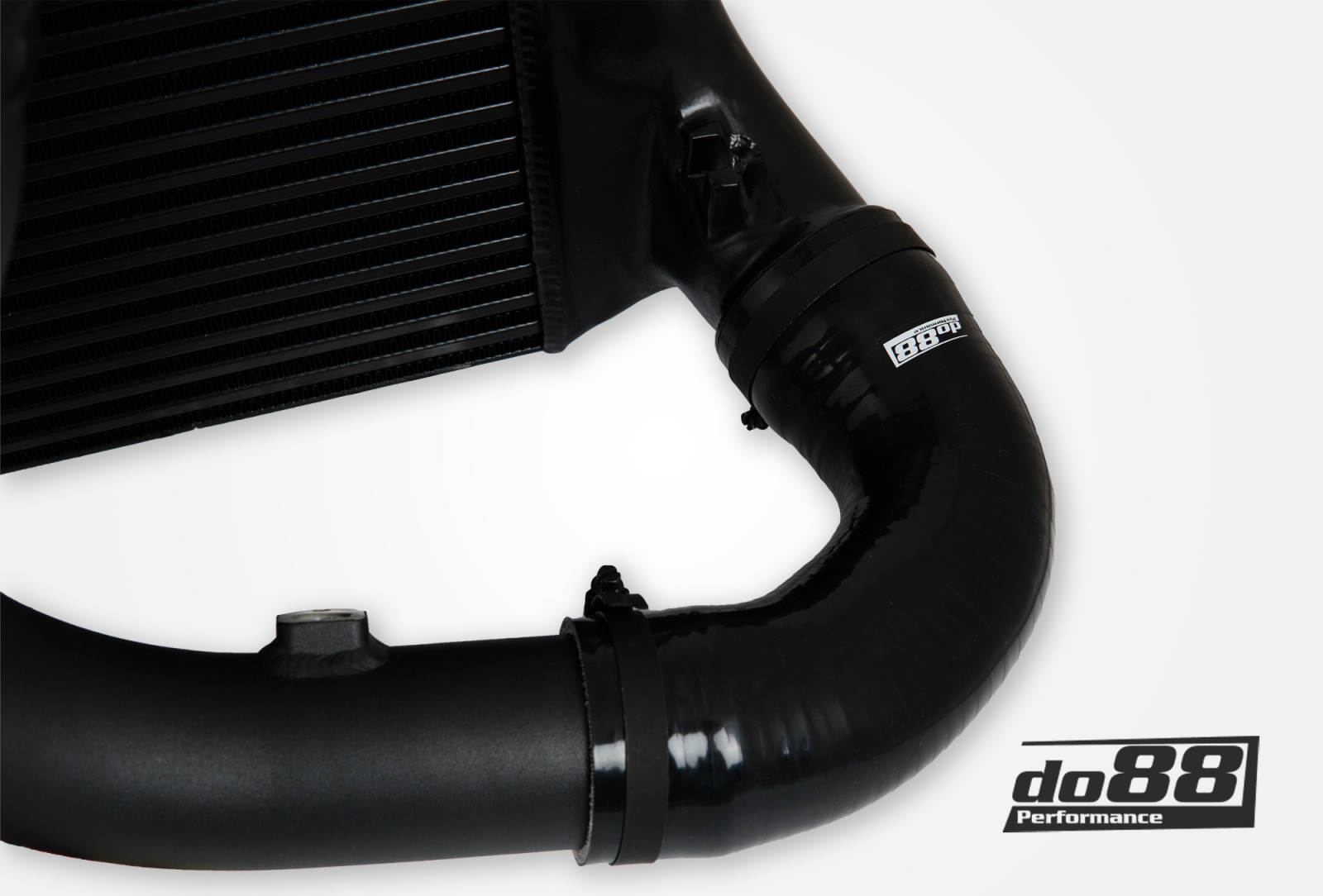

The pressure pipes are manufactured in 2,5” mandrel bent seamless aluminum pipes.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better. But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install, partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved.
do88 BigPack comes with all hardware necessary for installation.
This BigPack includes both do88 performance intercooler and pipe kit.
This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench.
Advantages with do88 BigPack (OEM intercooler/pipes):
- Core volume: 15347 cm3 (7719 cm3), do88 is 99% larger!
- Air flow at 0,15bar/2,18psi pressure drop: 325 CFM (239 CFM), do88 36% higher!
- Post intercooler air temperature at same conditions: 24°C (36°C), do88 12°C lower!
The BigPack includes a full aluminum performance intercooler and a complete 2,5” pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance.
The do88 performance intercooler is an all-aluminum construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop!
The pressure pipes are manufactured in 2,5” mandrel bent seamless aluminum pipes.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better. But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install, partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved.
do88 BigPack comes with all hardware necessary for installation.
Fits model
VW Golf (MK7, MK7.5)
Model years: 2013-2020
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI
VW Passat (3G)
Model years: 2015-
Engine: 1.8 / 2.0 TSI
VW Tiguan (MK2)
Model years: 2016-
Engine: 2.0 TSI
VW Arteon
Model years: 2017-
Engine: 2.0 TSI
VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI
Audi A3 / S3 (8V)
Model years: 2012-2020
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instructions.
Audi TT / TTS (8S)
Model years: 2015-
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
SEAT León / Cupra (MK3)
Model years: 2013-2020
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instructions.
Skoda Octavia / VRS (MK3)
Model years: 2013-2019
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Skoda Superb (B8)
Model years: 2015-
Engine: 1.8 TSI, 2.0 TSI
Model years: 2013-2020
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI
VW Passat (3G)
Model years: 2015-
Engine: 1.8 / 2.0 TSI
VW Tiguan (MK2)
Model years: 2016-
Engine: 2.0 TSI
VW Arteon
Model years: 2017-
Engine: 2.0 TSI
VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI
Audi A3 / S3 (8V)
Model years: 2012-2020
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instructions.
Audi TT / TTS (8S)
Model years: 2015-
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
SEAT León / Cupra (MK3)
Model years: 2013-2020
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instructions.
Skoda Octavia / VRS (MK3)
Model years: 2013-2019
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Skoda Superb (B8)
Model years: 2015-
Engine: 1.8 TSI, 2.0 TSI
OE-ref. / Replaces
5Q0145803N
5Q0145803P
5Q0145828
5Q0145832
5Q0145832D
5Q0145834
5Q0145838
6C0145838A
5Q0145840
5Q0145770B
6C0145770A
5Q0145803P
5Q0145828
5Q0145832
5Q0145832D
5Q0145834
5Q0145838
6C0145838A
5Q0145840
5Q0145770B
6C0145770A
